General Description

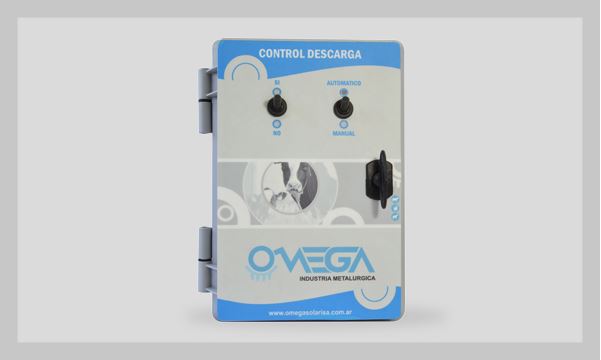

Device designed to protect and optimize the operation of electric pumps, regulating discharge and preventing damage caused by adverse conditions such as low water level, overload or dry running. This controller monitors the electrical and operational parameters of the pump and adjusts or stops its operation if dangerous conditions are detected, thus extending the equipment's service life.
- Automatic or manual tank filling and emptying.
- Suitable for use with low level sensor combined with timer or high-low sensors.
- 3 sensor terminals (high, low and common).
- 9 input and output terminals on power connections.
- Overvoltage protection on power supply and inputs.
- Light indicators for the applied function.
Technical Description
| Minimum dimensions (mm): 210 x 160 x 106 |
Power supply: 220 VAC |
Frequencies: 50-60 Hz |
Protection rating: IP66 |
Input protection: 0.5A fuse |
